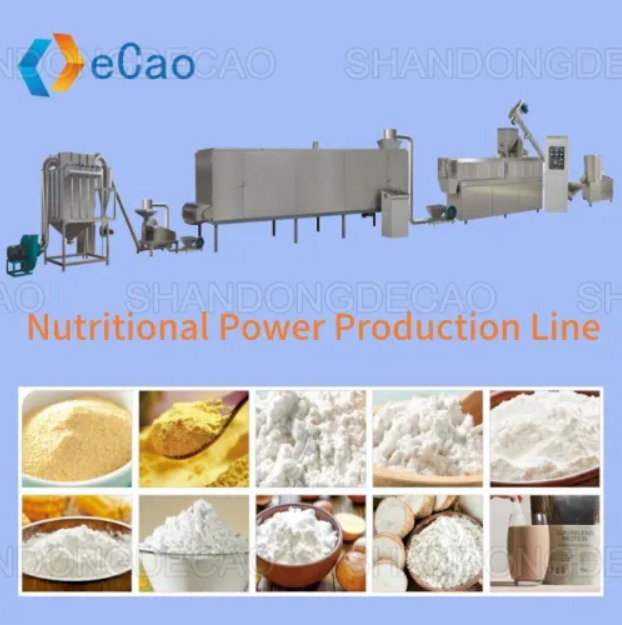

Shandong Decao nutritional powder production line integrates mixing, cooking, ripening, puffing, sterilization and packaging, and does not require a boiler. The production process is simplified, efficient and environmentally friendly.
This nutritional powder production line can automatically comple
te all processes from feeding to finishing, and can process and produce a large amount of nutritional powder in a short time.
Technical Parameters
主机型号 Model | DL-70ll | DL-85-ll |
Input Voltage | 380V/50HZ | 380V/50HZ |
Installed Capacity | 142KW | 165KW |
Power Consumption | 100KW | 125KW |
Capacity | 200-300kg/h | 300-400kg/h |
Length in space | 24000mm | 26000mm |
Nutritional Powder production line production process：
Mix-Screw elevator-Double screw extruder-Air conveyor-Drying-Milling system
Mix
| The mixing process is a key process in nutritional powder production. The basic process is to weigh the raw materials of different weights according to the formula, then pour them into the crusher and smash them, and then temporarily store all the materials in the storage bin. Then all the ingredients are ready, put them in the blender and mix them. |
Screw elevator
| Allow the mixed material to be transported to the next stage |
Double screw extruder
| Extrusion is a high temperature, short time heat treatment process. Through the extruder different mold (template) , can produce each kind of shape . |
Air conveyor
| Transport of extruded food to the next stage |
Drying
| High temperature baking to dry and mould the surface |
Milling system
| Broken rice is quickly crushed in the pulverizer. and the materialis discharged from the closed fan to obtain the product. At thesame time, the generated dust will enter the dust removal cabinetthrough the top of the cyclone under the action of the induceddraft fan, which greatly reduces the dust pollution in the area. |
The raw material of nutritional rice flour production line can be single material of rice flour and corn flour, or mixed material.
The product can be changed by changing raw materials and auxiliary equipment, and the nutritional rice noodles produced are rich in nutrients.
Q1: What kinds of products can be made?
A:The Nutrition Powder /Baby Rice Powder process Line has the characteristics of high degree of automation, strong stability, simple operation, high output, short process time, etc., and has effectively improved various drawbacks in the original tradition. It is widely used in various breakfast cereals, baby rice noodles, sesame paste and walnut paste products. It is a new type of high-efficiency nutritional rice flour production line.
Q2: What's the delivery time?
A: We usually need 40-45 days for large sizes, depends on the finished product.
Q3: What about the installation service?
A: We will send 1 engineer to the buyer's factory for a around 10-day period installation and training to the operators.
